The CHB Low Bay is a low-profile, durable fixture that is designed to quickly and easily upgrade existing HID and fluorescent fixtures to LED. For easy replacement, the CHB Low Bay has customizable optics, such as multiple beam angle lenses, anti-glare accessories, and more.
Lens
Beam Angles
Multiple light distribution angles for different project needs.
- CHB 50W & 70W Available in 90°, and 120°
- CHB 90W Available in 50°, 90°, and 120°
Lens Specifications

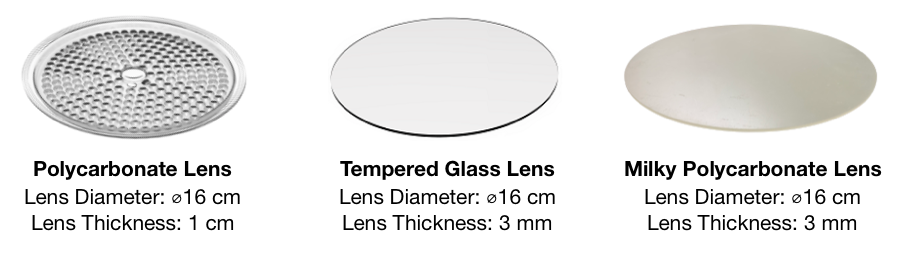

Available in the standard clear tempered glass lens (120°) as well as a milky polycarbonate lens (120°) or a polycarbonate lens in various degrees (see Beam Angles above).
How to Choose Your Lens
Choosing a lens with a narrow beam angle versus a wide beam angle is dependant on the application the light is in. For example, for higher ceilings, a narrow beam angle will allow more concentrated light to easily reach the floor from the high ceiling height as opposed to the wide beam angle that provides a wider area of light.
Reflectors & Shades

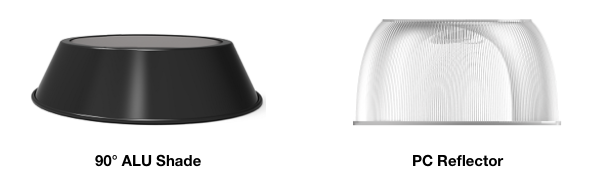

To cut down on glare the CHB fixtures are available for order with a 90° Aluminum Shade or a PC Reflector. Similar to a narrow beam angle, these accessories will minimize glare and will direct concentrated light.
